•Channel: 16
•Digital Input status
•Dry contact:
logic level 0: close to GND
logic level 1: open
•Wet contact:
logic level 0: +4V max.
logic level 1: +10V to +50V
•Effective distance for dry contact: 500M max.
•D/I can be used as counter channels:
16 Input Frequency : 100Hz
16-bit : 0~6,5535
•Optical Isolation: 3750 Vrms
•Over-voltage Protect: 70 Vdc

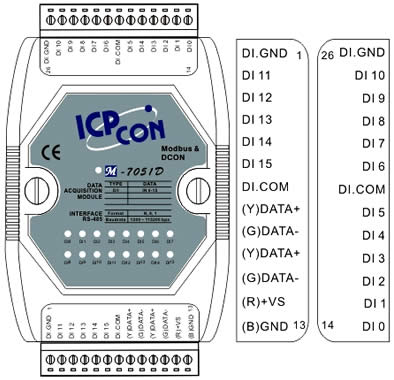

•I/O Connector Type: 13-pin plug-terminal*2
Communication Interface
•RS-485
Power Supply
•Input Power: 10~30Vdc
•Consumption :
0.6W(Max) for M-705
1.5W(Max) for M-7051D
