PW Mini & Large Scanning Ranges update : 2016/09/13

特點:
The PW is a compete photoelectric switch series miniature housing and provides large canning ranges at an economical price.
LED signal strength indicator orange:switching output active.
Sensitivity adjustment ( 270° ).
Light/dark rotary switch.

主要規格:
 Type PW-D20N PW-D90N PW-R600N PW-T15MN(停產)
 Scanning distancce,
 max. typeical
200mm 900mm 6m 15m
 Light source, light
 type
LED, visible red light  LED, visible red light

LED, visible red light
with polarizing filter

LED, visible red light
 Housing material Housing:ABS;Optic:PC Housing:ABS;Optic:PC Housing:ABS;Optic:PMMA Housing:ABS;Optic:PC
 Connection types PVC,2m ; 3 x 0.18mm, ψ4mm PVC,2m;2x0.18mm,ψ4mm
PVC,2m;3x0.18mm,ψ4mm
 Current consumption  ≦30 mA sender / receiver:
≦15 mA / ≦20 mA
 Ambient operation
 tempature
-25 ~ +55℃
 Ambient storage
 tempature
-40 ~ 70℃
 Max. Switching
 frequency
1000/s
 Switching mode,
 adjustable
Light/dark switching via rotary switch
 Enclosure rating IP65
 Circuit protection Output over current protection and short current protection, Reverse polarity protection
 Sensitivity, adjustable Potentiometer,270°
 Supply voltage Vs 10 ~ 30 VDC
 Ripple ±10%
 Switching outputs NPN, open collector
 Output current I max. 100mA
 Response time ≦0.5 ms
 Weight Approx.53g

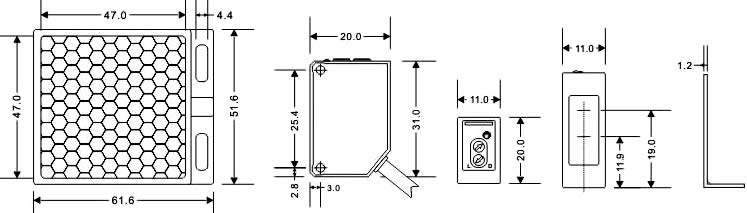

外觀尺寸 (Unit : mm):
