| ◆ | High reliability,long life. |
| ◆ | Safety. |
| ◆ | Low input power consumption. |
| ◆ | No contact points. |
| ◆ | No switching sparks. |
| ◆ | No noise. |
| ◆ | No mechanical damage. |
 |
| TB-RK SSR Terminal Boards | update : 2004/08/23 |
| 特點： |
|
|

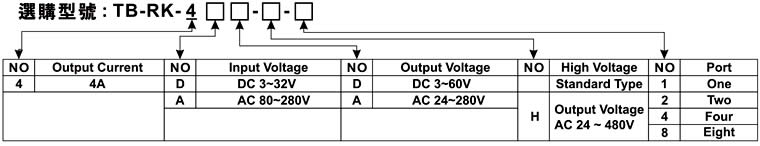

| 選購型號： |
 |
| 主要規格： |
| Type | TB-RK-4DA | TB-RK-4DD | TB-RK-4AD |
| Max load current | 4A | 4A | 4A |
| Max 1-cycle peak surge |
50A | 8.5A | 8.5A |
| Control voltage range | 3 ~ 32 VDC | 3 ~ 32 VDC | 80 ~ 280 VAC |
| Must turn off voltage | Max 1.0 VDC | Max 1.0 VDC | Max 10 VAC |
| Load voltage range | 24 ~ 280 VAC | 3 ~ 60 VDC | 3 ~ 60 VDC |
| Min blocking voltage | 600 VAC | 80 VDC | 80 VDC |
| Max off-state leakage | Less 5 mA | Less 1 mA | Less 1 mA |
| Dielectric strength input-output | 4000 VACrms | 2500 Vrms | 2500 Vrms |
| Turn off time | Less 1/2 AC cycle | Less 1/2 cycle | Less 1/2 See |
| Max on-state dv/dt |
100 V/μ SEC | 200 V/μ SEC | |
| Max on-state voltage drop | 2.0 VAC | 1.2 Vrms | |
| Input impedance | 1.5 Kohm | ||
| Frequency range | 47 ~ 70 Hz | ||
| Turn on time | Less 2 mSec |
||
| Capacitance in-out | Less 15 PF | ||

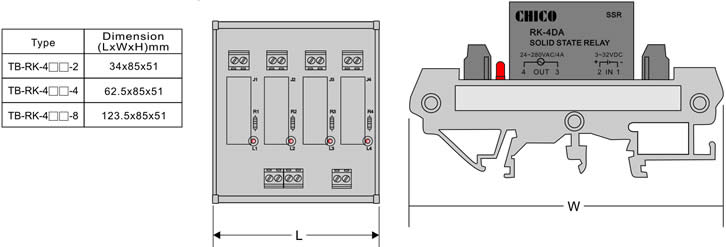

| 外觀尺寸 (Unit : mm)： |
 |
下載PDF檔
(483 KB) |
 |
