SM-E600 Single Output Power Supply update:2003/12/10

特點 :
AC input active surge current limiting.
AC input range selected by switch.
Short circuit, overload, over voltage, over temperature protection.
Forced air cooling by built-in DC fan.
Built-in remote sense function.
Low cost, high reliability.

主要規格 :
 TYPE SM-E600-5 SM-E600-12 SM-E600-15 SM-E600-24 SM-E600-27

SM-E600-48

 DC VOLTAGE  5V 12V 15V 24V 27V 48V
 RATED CURRENT 100A 50A 40A 25A 22.2A 12.5A
 CURRENT RANGE 0 ~ 100A 0 ~ 50A 0 ~ 40A 0 ~ 25A 0 ~ 22.2A 0 ~ 12.5A
 RATED POWER 500W 600W 600W 600W 599.4W 600W
 RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p
 VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10 ~ 13.5V 13.5 ~ 16.5V 22 ~ 26.4V 24 ~ 30V 43 ~ 56V
 VOLTAGE TOLERANCE Note.3 ± 2.0% ± 1.0% ± 1.0% ± 1.0% ± 1.0% ± 1.0%
 LINE REGULATION ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5%
 LOAD REGULATION ± 2.0% ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5%
 EFFICIENCY (Typ.) 78% 83% 84% 87% 87% 88%
 OVER VOLTAGE 5.75 ~ 6.3V 13.8 ~ 16.2V 18 ~ 21V 27.6 ~ 32.4V 31 ~ 36.5V 57.6 ~ 67.2V
 Protection type:Shut down o/p voltage, re-power on to recover
 OVER LOAD  105 ~ 125% of rate load
 Protection type:Shut down o/p voltage, re-power on to recover
 OVER TEMPERATURE    85℃ ± 5℃ (TSW1 : Detect on heat sink of power transistor)
 Protection type:Shut down o/p voltage, recovers automatically after temperature goes down
 SETUP, RISE, HOLD TIME  1000ms, 50ms, 16ms/230VAC 1000ms, 50ms, 14ms/115VAC at full load
 VOLTAGE RANGE  90 ~ 132VAC/180 ~ 264VAC selected switch 254 ~ 370VDC
 FREQUENCY RANGE  47 ~ 63Hz
 AC CURRENT  12A/115VAC 7.5A/230VAC
 INRUSH CURRENT (max.)  30A/115VAC 50A/230VAC
 LEAKAGE CURRENT  <2.0mA/240VAC
 WORKING TEMP., HUMIDIITY  -10 ~ +60℃ (Refer to output load derating curve), 20 ~ 90% RH non-condensing
 STORAGE TEMP., HUMIDITY  -40 ~ +85℃, 10 ~ 95%RH
 TEMP. COEFFICIENT  ± 0.05%/℃ (0 ~ 50℃)
 VIBRATION  10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
 SAFETY STANDARDS  UL60950 Approved
 WITHSTAND VOLTAGE  I/P-O/P : 3KVAC  IP-FG : 1.5KVAC O/P-FG : 0.5KVAC
 ISOLATION RESISTANCE  I/P-O/P, I/P-FG, O/P-FG : 100M Ohms/500VDC
 MTBF  197K hrs min. MIL-HDBK-217F(25℃)
 DIMENSION  247 × 127 × 63.5mm( L × W × H )
 PACKING  2Kgs/pcs, 6pcs/12Kgs/0.76CUFT

 NOTE

 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and
   25℃ of ambient temperature.
 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12〞twisted pair-wire
   terminated with a 0.1uf & 47uf parallel capacitor.
 3.Tolerance : includes set up tolerance, line regulation and load regulation.

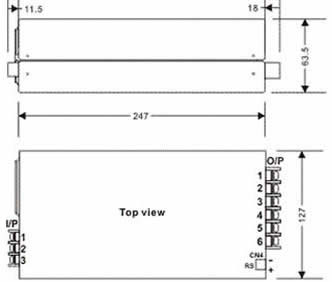

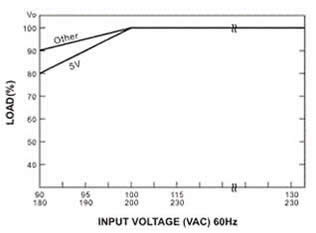

外觀尺寸(Unit : mm) : 靜態特性 :
